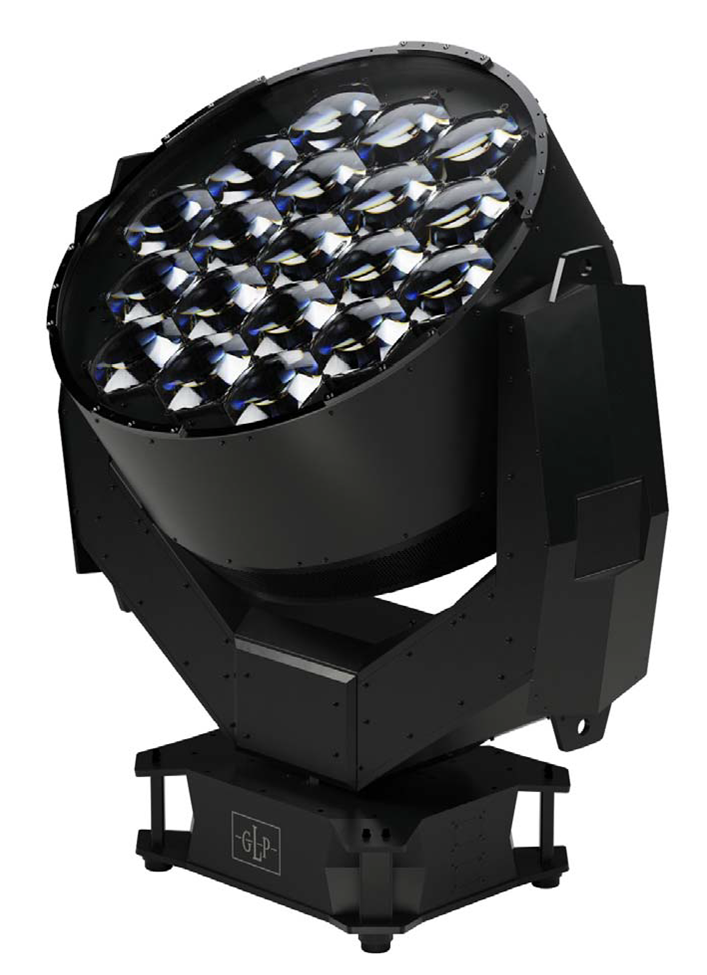

GLP MAD MAXX

The first real IP65-rated LED fat beam light

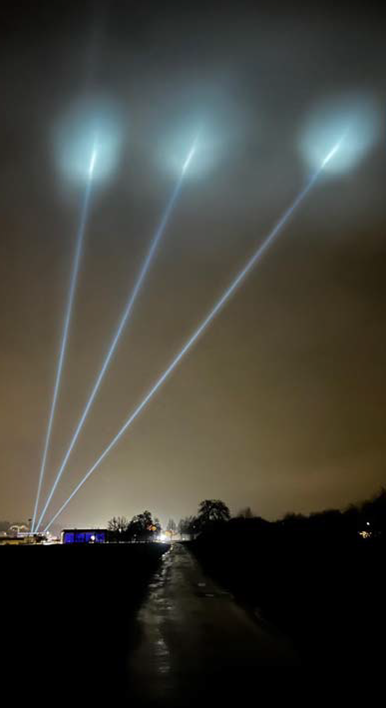

The GLP MAD MAXX is the first LED‐based fat‐beam fixture with an impressive 750 mm beam diameter, comparable to 3kW and 7kW xenon beam lights. Designed for use as a sky beam or super‐fat beam effect, it delivers massive light output with no visible external focus points.

The CW version (ColorWheel) enables precise color adjustments with a 16-bit color wheel and CTO down to 2500 K. Users can adjust the beam diameter as needed with a virtual iris.

The compact MAD MAXX requires only 2500 W, is IP65-certified, making it weatherproof and low-maintenance.

Classified as a "NO LASER" device, it minimizes health risks and regulatory requirements, making it ideal for flexible and safe deployments.

Light Source

Type: White Light LED Light Source Count: 19 Light Source Power: 90 W

Light Source Lifetime: 20,000 h

LED Refresh Rate: adjustable up to 25 kHz

CCT: 6,500 K

CRI (Ra): 70+ | 90 with High CRI TLCI: 49

TM-30-15: 90 / 71

Optical System

Output: up to 68,000

Peak Luminous Intensity: 4.7 McD Beam angle: 1.6°

Output Lens Diameter: 750 mm

Effects

Dimmer: 0 – 100%; 16 bit

Color Wheel: mechanical Color Wheel Module with adjustable CTO + 18 fix colors

Pan Movement Angle: 540° normal, 650° extended, 16 bit

Tilt Movement Angle: 200°, 16 bit

For more details, click the link below www.glp.de/en/products/entertainment‐lighting/moving‐lights‐led/mad‐maxx
